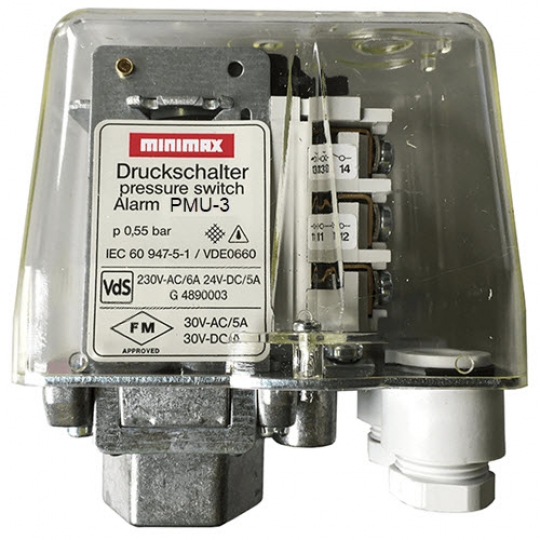

Pressure Switch PMU-10 - Pressure Switch PMU-3
Technical Data
Pressure Medium ...................................Water, Compressed Air
Temperature Range ...............................0 °C Up To +80 °C, Water
......................................-25 °C Up To +100 °C, Compressed Air
Burst Pressure ...............................................70 Bar For Housing
..................................................................70 Bar For Diaphragm
Operating Pressure ..................................................Max. 16 Bar
Hysteresis ............................................................See Page 2/2
Switching Tolerance ....................±0,2 Bar Of The Adjusting Factor
Ip Code ...............................................................................Ip54
Nominal Current .............................Load Controlled, Adapted To
The Minimax Monitoring Systems
Material / Surface
Cover ............................................Pa-Transparent, Uv-Resistant
Diaphragm ....................................Cr With Textile Reinforcement
Housing ...............................Gd-Al Si12, Sheet Steel Galvanized
