Okazaki RTD PT100 | T32 Thermocouple Okazaki

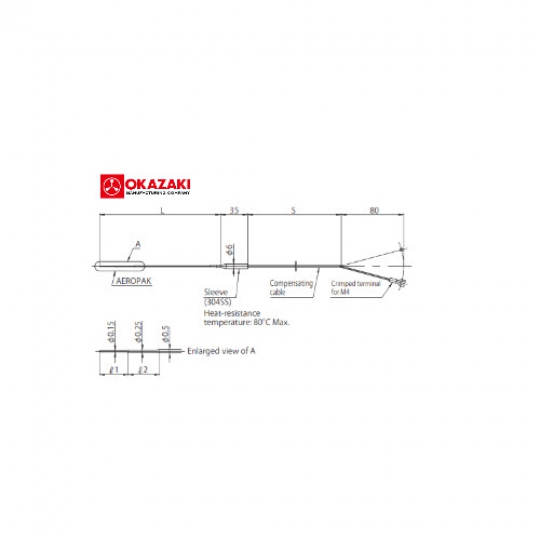

Sheath outer diameter
(Unit: mm)

φ0.15 / φ0.25 / φ0.5

Number of  element wires

Single

Type K

Ni-Cr/Ni-Al

Measuring junction

U (#9) Ungrounded

Sheath material

NCF600eq.(Inconel 600)

Class

2 (Former JIS class 0.75)

RTD, IEC60751 Pt100Ω 3WIRE DOUBLE ELEMENT, MANUF: OKAZAKI, PROCESS CONN. NPT1/2" (M), E.CONN. M20x1.5 (F), MAT. SHEATH: SS316, EEx-d (ATEX), L=220mm

RTD, IEC60751 Pt100Ω 3WIRE DOUBLE ELEMENT, MANUF: OKAZAKI, PROCESS CONN. NPT1/2" (M), E.CONN. M20x1.5 (F), MAT. SHEATH: SS316, EEx-d (ATEX), L=150mm

THERMOCOUPLE, IEC-K DOUBLE ELEMENT UNGROUNDED, MANUF: OKAZAKI, OUT: IEC-K-MV, P.CON. BAYONET, E.CON. -, MAT. SHEATH SS316,  EEx-i (ATEX) WITH LEAD = 10m

THERMOCOUPLE, IEC-K DOUBLE ELEMENT UNGROUNDED, MANUF: OKAZAKI, OUT: IEC-K-MV, PROCESS CONN. NPT1/2" (M), E.CONN. M20x1.5 (F), MAT. SHEATH SS316,  EEx-d (ATEX) WITH L=90 mm

THERMOCOUPLE, IEC-K DOUBLE ELEMENT UNGROUNDED, MANUF: OKAZAKI, OUT: IEC-K-MV, PROCESS CON. NPSM 3/4"(M), E.CONN. M20x1.5 (F), MAT. SHEATH SS316,  EEx-d (ATEX) WITH L2= 245 mm, L=40 mm

THERMOCOUPLE, IEC-K DOUBLE ELEMENT UNGROUNDED, MANUF: OKAZAKI, OUT: IEC-K-MV, PROCESS CON. WELL : ASME 150Lb RF 1-1/2", E.CONN. M20x1.5 (F), MAT. SHEATH SS316, EEx-d (ATEX)WITH WELL 061-TW-8*50, U=170mm

THERMOCOUPLE, IEC-K DOUBLE ELEMENT, UNGROUNDED, MANUF: OKAZAKI, OUT: IEC-K-MV, PROCESS CON. WELL : ASME 150Lb RF 1-1/2", E.CONN. M20x1.5 (F), MAT. SHEATH SS316,EEx-d (ATEX) WITH WELL 061-TW-8*11, U=320mm

THERMOCOUPLE, IEC-K DOUBLE ELEMENT UNGROUNDED, MANUF: OKAZAKI, OUT: IEC-K-MV, PROCESS CON. NPT1/4" (M), E.CONN. -, MAT.SHEATH SS316,  EEx-i (ATEX) WITH LEAD = 10m, L=310 mm

THERMOCOUPLE, IEC-K DOUBLE ELEMENT UNGROUNDED, MANUF: OKAZAKI, OUT: IEC-K-MV, PROCESS CON. -, E.CONN. -, MAT.SHEATH SS316,  EEx-i (ATEX) WITH LEAD = 10m
