RM42-FE-010101 INT S.r.l.
Đại lý INT S.r.l. tại Việt Nam

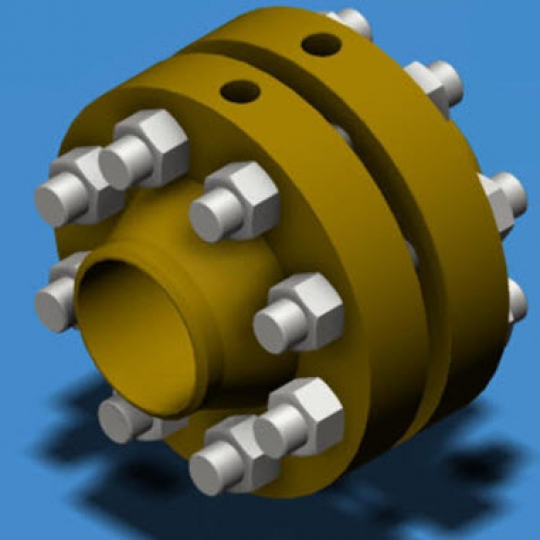

Orifice Flanges and Orifice Plates
Annular chamber assembly, concentric bore, square edge type with the following main characteristics:
Couple of piezometric rings with annular chamber, 316 steel material, complete with N°2 pressure taps each, ½” NPT complete with plugs
Orifice bore calculation according to ISO 5167 std
Orifice material: AISI 316
Surface roughness 125-250 AARH
N°1 couple of spiralwound gaskets
Suitable to be inserted in existing flanges
Stud, nuts, gaskets and flanges excluded
Tags and other characteristics as follows:
N°1 Annular chamber assembly DN 300 PN 16
Plate thickness 4 mm
